Lusail Marine
Pedestrian and Commerce Bridge Design
![](https://freight.cargo.site/t/original/i/aff19e71c5a7bfc876cf0b4bfaf39d314361714f15cab30265c48b70eb20f573/001.jpg)
— Crossings Rooted in the Traditions of the Region —
![](https://freight.cargo.site/t/original/i/8d32205b3fd7079ab12115470015c8ef3ab705f88e38ea0de1061037d3fb7c0d/002.jpg)
![](https://freight.cargo.site/t/original/i/579e0d2b14b20b27956c362507866e84b72f407a7614a20bb1d82b6e2b4bb3e6/003.jpg)

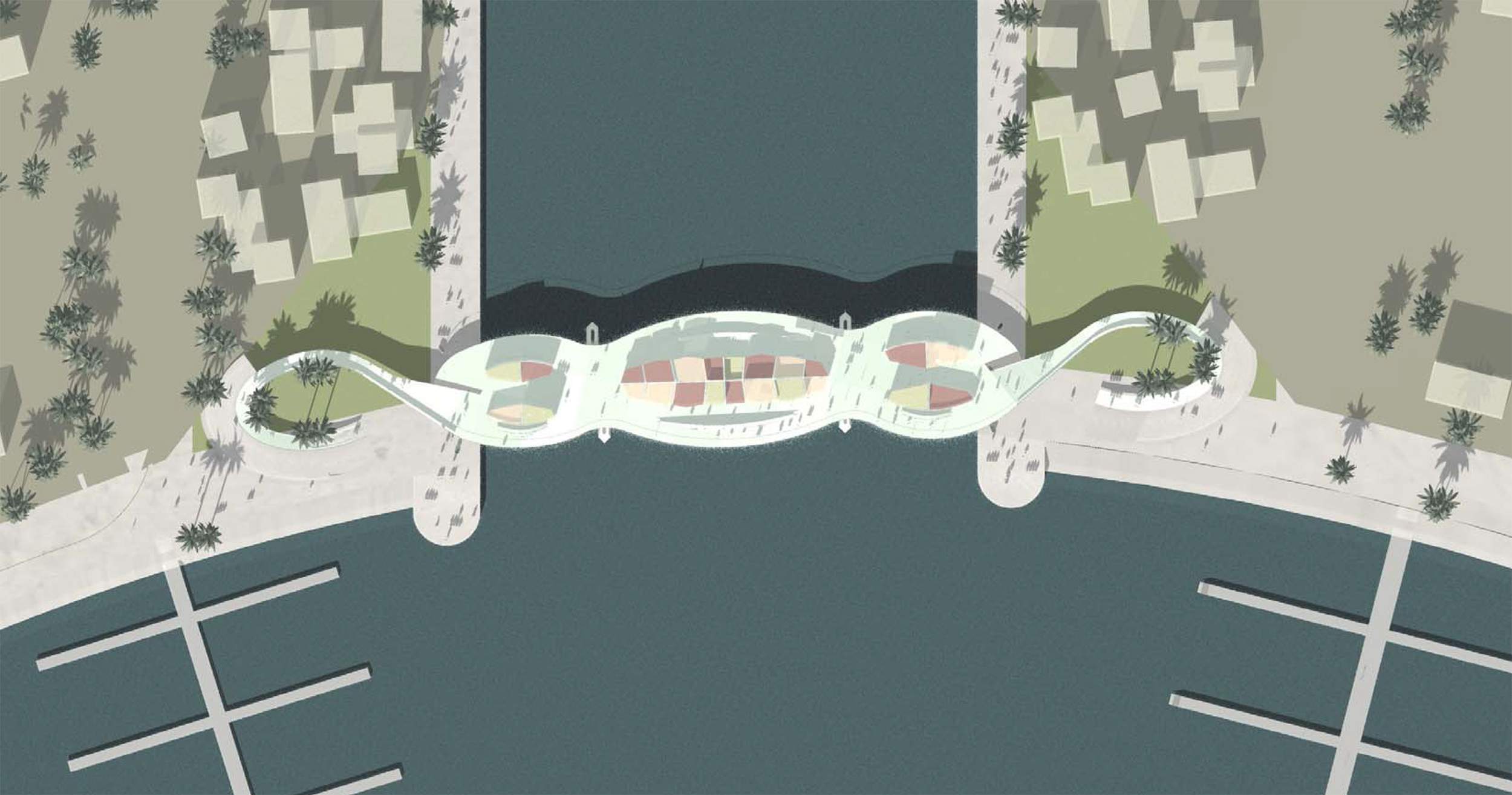

> Situated on the harbour of a newly formed town near the city of Doha, tow pedestrian and two commerce bridges are designed based on the synthesis of two structural types: a free-form shell canopy and a stress ribbon deck. The form shares an economy of material and is a dramatic expression of the structural forces at work resulting in a true fusion. The canopy is only 100mm thick at the apex whilst lifted at four evenly spaced points by saddles and supported by cables; the deck is just 200mm thick along its whole length.
![](https://freight.cargo.site/t/original/i/5d20ca6ce614b0d662938fdb79d2cd0e286829077d0144b6ae694af0335f3d41/007.jpg)
![](https://freight.cargo.site/t/original/i/369083d798cb8a6796ad71d1f66c8f2c7f8e3cfa7396a39469b937b8fd8cfe18/006.jpg)
![](https://freight.cargo.site/t/original/i/583dddb34f6842d4d647d845ac1a1d5638b59c0abd0f8fda5bbf6baef8a07a45/005.jpg)
Initial Ideas.
![](https://freight.cargo.site/t/original/i/15f0f793a693ca1c6c0f5a462ded19125e6b3e57b7f5f0285e79ddd019a6cb8d/008.jpg)
Structural Concept.
![](https://freight.cargo.site/t/original/i/4f8107ef1211716faed86a681b06456e6e2929a694805db66231fb527dc46a39/010.jpg)
![](https://freight.cargo.site/t/original/i/96183cd40fc84218ea428ac4bdb74846c9b4cb8636a0369af3353a15b006eb89/009.jpg)
![](https://freight.cargo.site/t/original/i/80f3773ea9fcca0690785ddf73deb2e7641dc0645863e11b02c7e89888f04f89/011.jpg)
![](https://freight.cargo.site/t/original/i/760bd36f3436327f9c95078e9c2835a551c8f388cc3d7a006cedea369b594819/016.jpg)
![](https://freight.cargo.site/t/original/i/df0e67b532f9dec22f7516d88c56e4b209165d03fae7bd6a98ab9045968bb4a2/017.jpg)
![](https://freight.cargo.site/t/original/i/3bb8266e9384d13fc2ac7232059a0d8380bfbeca4b35a880c61c0e8a914813c3/013.jpg)
![](https://freight.cargo.site/t/original/i/8ed15dc7758618291f1e83b497ecc0c35cbf4c5e11f44ed4b8377f44029aa9e8/012.jpg)
![](https://freight.cargo.site/t/original/i/782b8af8b4e9af279bded45841c210dc011fe0b2669013156db1f634bb3a9b75/014.jpg)
![](https://freight.cargo.site/t/original/i/b68be0007838488a4ca0a5054d1b26fce8ace2956e65be2d08529caab067c1ba/015.jpg)
![](https://freight.cargo.site/t/original/i/7fb171524473516bfbf288b70537b5d90c6c2dde50e1233772597f582b8098c8/018.jpg)
![](https://freight.cargo.site/t/original/i/7b011b9b7e0ebe1a3bbba14af16f1de1a96d38e7727aa6230567c2fec123688f/019.jpg)
![](https://freight.cargo.site/t/original/i/f584775348edefa53d7dde18a6814a369df4c01fe73b9e9dd9459011a04df10a/022.jpg)
![](https://freight.cargo.site/t/original/i/c76b2a9a90c30e6a4385c25ad588161fa53721ff56fd4560aa2d7e7f0957f7f6/021.jpg)
![](https://freight.cargo.site/t/original/i/5b3c440cd2c4d05f19d263e0325c6eab6f5c6c2f9b8e78ffeab1f64ccff7172a/026.jpg)
![](https://freight.cargo.site/t/original/i/cfcf809c8c88028d880c95c6e6c4579f9e0799f41768b25a730d5d7b6f08d12f/020.jpg)
![](https://freight.cargo.site/t/original/i/554d98a7f22d1c81b3a7f464c31dd07158e9d9485f66cb59d3faec8da07204f8/023.jpg)
![](https://freight.cargo.site/t/original/i/52a227cba3c4a54b92ca030b04889a0162cfcac4d30d45c4b5a3dc920e92aedd/024.jpg)
Organisation + [Credits]
Ramboll Group, [Ramboll]
Role + [Team Size]
Design Lead, [8]
Date + [Duration of Involvement]
2009, [2 months]
Client + [Project Location]
Lusail Development Company, [Doha, Qatar]
Status + [Project Type]
Competition, [Design Concept]
Brief + [Challenge]
Crossings that Integrates Leisure and Commerce,
[Incorporating Local Practices in a Modern Setting]
